With the continuous development of industrial technology, caterpillar drive chains play a crucial role in many fields. So, what is a caterpillar chain?

1. The development process of caterpillar chains

The development of caterpillar drive chains can be traced back to the early military field. In war, in order to enable heavy military equipment such as tanks to travel smoothly on various complex terrains, caterpillar chains have emerged. With the passage of time, the technology of caterpillar chains has continuously advanced, and their application fields have gradually expanded to multiple industries such as engineering machinery and agricultural machinery.

Nowadays, caterpillar chains have become an indispensable component of many large equipment. Its design and manufacturing are constantly innovating to meet the needs of different devices in different working environments.

2. Structural composition of caterpillar chain

‍

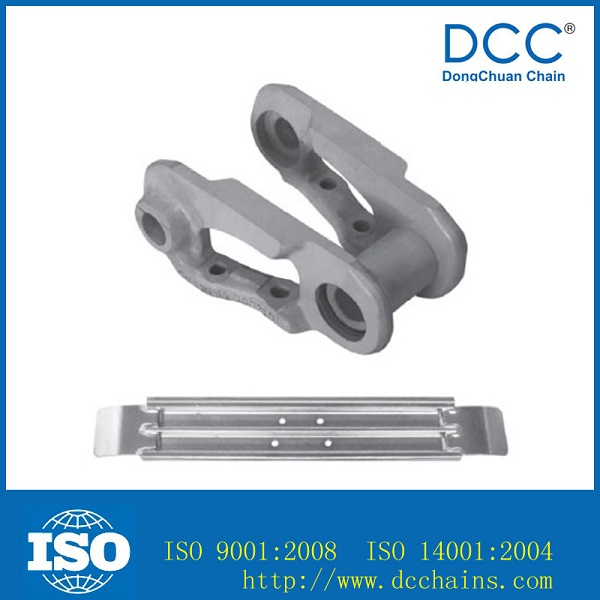

A caterpillar drive chain is mainly composed of chain links, track shoes, pin shafts, pin sleeves, and other components.

The caterpillar drive chain is the basic unit of the caterpillar chain, and multiple track links are connected together through a pin shaft and a pin sleeve to form a continuous chain. The track shoes are installed on the chain rail joints, in direct contact with the ground, providing support and friction. The combination of the pivot and sleeve allows the caterpillar chain to rotate flexibly and adapt to different terrain changes.

3. Working principle of caterpillar chain

The working principle of the caterpillar drive chain is to transmit power to the entire track system through engagement with the driving wheels, thereby driving the equipment forward. When the driving wheel rotates, it drives the chain links on the caterpillar chain to move, and the track shoes slide or roll on the ground, generating forward thrust.

Due to the large contact area between the caterpillar drive chain and the ground, it can disperse the weight of the equipment, reduce the pressure on the ground, and enable the equipment to travel stably in soft or muddy environments.

4. Classification of caterpillar chains

(1) Classified by purpose

Construction machinery caterpillar chain: used for excavators, loaders, bulldozers and other construction machinery, with high strength, good wear resistance and other characteristics.

Agricultural machinery caterpillar chain: suitable for agricultural equipment such as tractors and harvesters, usually requiring good corrosion resistance and adaptability.

Military equipment caterpillar chain: designed for military vehicles such as tanks and armored vehicles, requiring extremely high reliability and protective performance.

(2) Classified by structure

Single caterpillar chain: simple structure, easy to manufacture, but relatively low load-bearing capacity.

Double pin caterpillar chain: higher strength, suitable for large equipment, but the manufacturing process is more complex.

5. Characteristics and advantages of caterpillar chains

(1) Good passability

caterpillar drive chains can adapt to various complex terrains, such as mud, sand, mountains, etc., enabling equipment to work normally in harsh environments.

(2) High load-bearing capacity

Due to the large contact area with the ground, the caterpillar chain can withstand a large weight and is suitable for heavy equipment.

(3) Strong stability

The design of the caterpillar chain makes the equipment more stable during driving and less prone to accidents such as rollover.

(4) Good wear resistance

Made of high-strength materials, the caterpillar chain has excellent wear resistance and can extend its service life.

6. Maintenance and upkeep of caterpillar chains

In order to ensure normal operation and prolong the service life of the caterpillar chain, regular maintenance and upkeep are required.

Check the tightness of the caterpillar drive chain and adjust it in a timely manner to avoid being too loose or too tight.

Clean the soil, debris, etc., on the caterpillar drive chain to prevent wear and blockage.

Regularly add lubricating oil to reduce friction between the pin shaft and the pin sleeve.

Pay attention to checking the wear of the track shoes and replace severely worn components in a timely manner.

In short, caterpillar chains are important mechanical transmission components with unique structures, working principles, and characteristics. It plays an irreplaceable role in fields such as engineering machinery, agricultural machinery, and military equipment. If you need high-quality caterpillar chains, DONGWU is your most reliable choice. DONGWU is committed to providing high-quality caterpillar chain products with outstanding performance and reliable quality, which can meet the needs of different customers. Let's choose high-quality caterpillar chains together to ensure the stable operation and efficient work of the equipment.
