In the long process of industrial development, the transmission system has always been a key link for the normal operation of various mechanical equipment. As an important mechanical transmission method, link chain sprocket is an indispensable core component in chain drive. With the continuous advancement of technology, link chain sprockets have evolved from simple designs to a variety of types to meet the increasingly complex needs of different fields. Next, let's delve into the different types and wide applications of link chain sprockets together.

1. Classified by Material

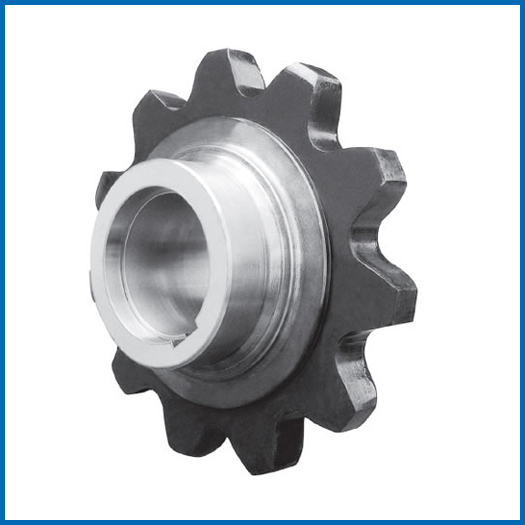

Steel chain sprocket

The steel link chain sprocket has high strength and good wear resistance, and with its excellent mechanical properties, it performs outstandingly in many heavy-duty and high-speed transmission scenarios. For example, in large-scale mining equipment, the transportation of ore requires strong driving force, and steel chain sprockets can withstand enormous tension and frequent friction, ensuring stable operation of the transportation chain and providing strong support for the continuous production of the mine.

Cast iron sprocket

Cast iron sprockets have relatively low costs and mature manufacturing processes. For some situations where precision is not required and the load is relatively small, they are an economical choice. Like some small-scale agricultural irrigation equipment, the operating conditions are relatively stable, and cast iron sprockets can fully meet the basic transmission needs while effectively controlling equipment costs.

Stainless steel sprocket

The biggest advantage of stainless steel sprockets is their corrosion resistance, which allows them to perform well in special environments such as food processing and chemical production. In the food production line, the hygiene standards are extremely high. Stainless steel sprockets not only ensure precise transmission of the chain, but also resist corrosion from food raw materials, cleaning agents, and other substances, ensuring food safety.

Aluminum alloy sprocket

Aluminum alloy sprockets are lightweight, and for some application scenarios that have strict requirements for the overall weight of the equipment, such as auxiliary transmission systems in aerospace equipment or portable power tools, aluminum alloy sprockets can reduce the weight of the equipment while meeting the transmission function, making it easy to operate and transport.

2. Classified by structural form

Standard chain sprocket

The standard sprocket has a simple structure and strong universality, and is widely used in various conventional mechanical transmissions. Its design conforms to general transmission standards, is easy to obtain and install, and is also relatively easy to maintain. It is suitable for chain transmission of most ordinary industrial equipment, such as common machine tool transmission systems.

Double row sprocket and multi row sprocket

Double row and multi row sprockets can transmit greater power, and by increasing the number of meshing points between the chain and sprocket, the stability and load-bearing capacity of the transmission are improved. In the heavy machinery manufacturing industry, such as the transmission device of large ship engines, when high power output is required, multiple rows of sprockets can play their advantages, but due to the relatively complex structure, the manufacturing cost will also increase accordingly.

Special toothed chain sprocket

Special toothed sprockets are carefully designed according to specific transmission requirements to improve transmission efficiency or meet special working conditions. For example, in some high-speed precision machinery, in order to reduce noise and vibration, special toothed sprockets can optimize the meshing process between the chain and sprocket, achieving smoother and more efficient transmission.

3. Industry application cases

Mechanical manufacturing

In the mechanical manufacturing industry, the application of link chain sprocket is ubiquitous, from simple mechanical equipment to complex automated production lines. Based on the load, speed, and precision requirements of different processes, engineers accurately select the appropriate sprocket type and specifications. For example, on an automated assembly line, in order to achieve fast and precise transportation of components, high-precision standard sprockets are used in combination with high-strength chains to ensure efficient operation of the production line.

automotive industry

The timing chain system and some transmission devices of car engines cannot do without link chain sockets. In the timing chain system, high-precision and highly reliable sprockets are required to ensure the accurate opening and closing of valves and ensure the normal operation of the engine. At the same time, in some auxiliary transmission links of the car chassis, different structures and materials of sprockets should be selected reasonably according to space limitations and load conditions.

Mining equipment

The mining environment is harsh, and the requirements for link chain sprockets are extremely high. As mentioned earlier, steel heavy-duty chain sprockets are used for ore transportation. In addition, suitable chain sprockets are selected according to specific working conditions in auxiliary equipment such as mine ventilation systems and drainage systems to ensure the smooth operation of the entire mining operation.

Logistics transportation

In the field of logistics transportation, whether it is cargo handling equipment in automated warehouses or transmission devices on express sorting lines, link chain sprockets play a key role. In order to adapt to the weight, size, and conveying speed requirements of different goods, diversified sprockets are widely used to achieve efficient and stable logistics distribution.

In short, link chain sprockets come in a wide variety of types, with different materials and structural forms having their own advantages and disadvantages, and have extensive and in-depth applications in various industries. Only by carefully selecting the appropriate link chain sprocket based on specific job requirements can the best transmission effect and economic benefits be achieved.
